How to Measure a Deep Kitchen Cabinet Before Buying a Pull-Out Shelf

A pull-out is a project, not a drop-in bin

Here's the failure mode I want you to avoid: the box arrives, the screws go in halfway, and the tray won't clear the hinge or won't slide out far enough to be useful. Most things you buy for a kitchen cabinet just go inside it — a bin, a set of dividers, a lazy susan you set on the shelf — but a pull-out is different. It mounts to the cabinet frame or the existing shelf with hardware and rides on a slide or a set of rails, so I think of it as a small installation project rather than a container I'm picking a size for. Getting that installation right starts with learning how to measure cabinet for pull out shelf hardware before you ever click buy.

That's why measuring the cabinet properly comes first. Before I'd open a single listing, I'd want the opening width, the interior depth, and the vertical clearance written down — not guessed from the door opening.

How to Measure Cabinet for Pull Out Shelf Fit: The Three Measurements to Take First

This is where you actually measure a cabinet for a pull-out shelf: three numbers taken off the real cabinet, not estimated from the door opening. Interior width, interior depth, and vertical clearance between shelves — or between the shelf and the cabinet top, if you're starting from an empty box. Get these before you open a single listing.

Interior width

The width that matters is the narrowest point the shelf actually has to pass through — the face frame opening, measured at its tightest point, including anything hinges intrude into that opening — not the wider space between the interior side walls. Cabinets often have a face frame whose side pieces overlap the box, so the opening you have to fit hardware through is narrower than the space between the interior side walls; that opening is the number that limits you. Measure it at the front, the middle, and the back — face frames aren't always perfectly square — and use the tightest of the three numbers.

Interior depth

Interior depth is the distance from the back wall to the front edge of the frame, not to the face of the door. This is usually the number that sent you looking for a pull-out in the first place: a deep cabinet swallows whatever sits in the back third, and you end up buying things you already own because you can't see or reach past the front row. The whole point of the shelf is to close that dead zone, so the depth number has to be right, and it has to account for how far the shelf actually extends — a full-extension slide brings the back of the tray all the way to the front of the opening, while a partial-extension slide leaves a few inches still buried, which matters a lot if the dead zone is the reason you're buying one in the first place.

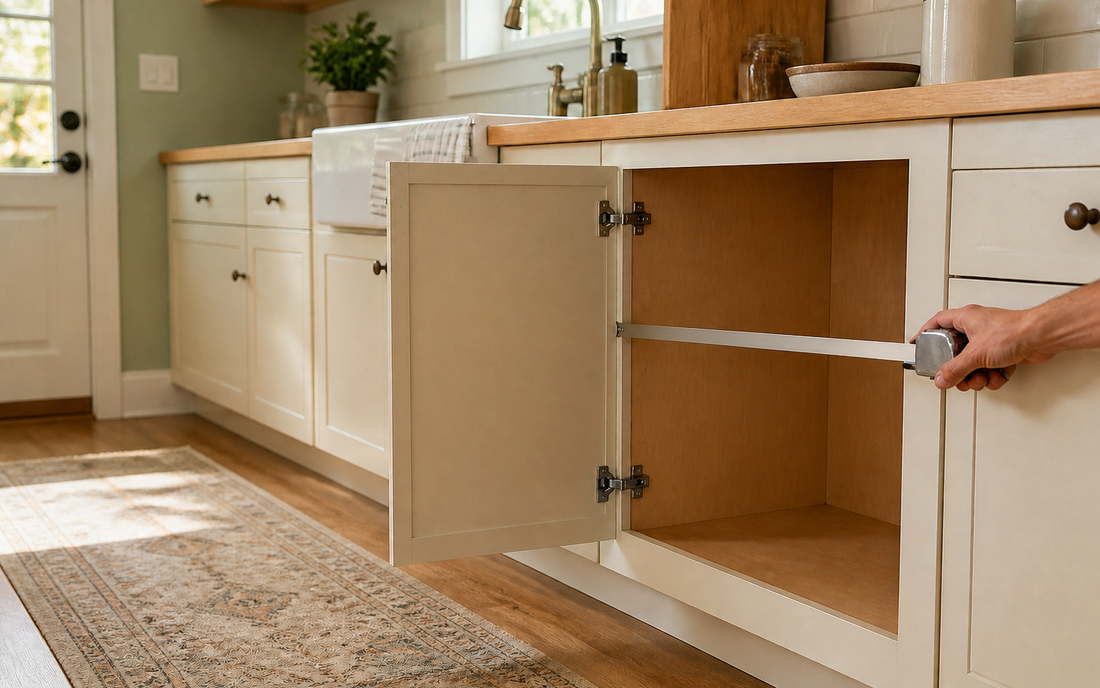

Getting the number itself is the hard part, since a tape measure doesn't stay flat against a back wall you can't fully see. Push a stick, a dowel, or a spare piece of trim straight back until it hits the wall, mark it at the front edge of the frame, then pull it out and measure to the mark. A tape held by hand tends to bow partway back and read long, or catch on a lip in the back panel instead of the actual wall, so if you skip the stick, treat the number you get as a rough guess rather than a measurement.

Vertical clearance

Vertical clearance is the gap between where the pull-out will sit and whatever is directly above it — another shelf, a shelf pin, or the cabinet top. A listing's stated height is usually just the tray, not the slide hardware underneath it, and the gap has to swallow both stacked together. Before you buy, check whether the listing gives an installed height or only a tray height — if it only gives tray height, treat the vertical clearance as unconfirmed rather than assuming the hardware will squeeze in, since a pull-out that's too tall for the gap won't sit level and may keep the door from closing at all.

Write down all three before you start browsing.

Where cabinet listings leave gaps

I read a pull-out listing for what it doesn't say as much as what it does: mounting details, like whether hardware is included or whether it requires screws into the cabinet frame, are often mentioned in passing or left out entirely. If a listing doesn't say what's in the box, assume you may need brackets, screws, or a mounting plate separately, and confirm before checkout rather than after the tray arrives with no way to attach it. This is why you measure cabinet for pull out shelf fit yourself before you shop — a listing photo shows the item fit someone else's cabinet, not yours.

Checking for obstructions inside the cabinet

An opening that measures wide enough on paper can still be too tight for a sliding shelf once you account for what's actually inside it. A few things I'd check with the door open and a flashlight in hand.

Hinges often protrude into the interior, especially on older cabinets or ones with soft-close hardware added later, and that protrusion eats into usable width right where a pull-out's side rail needs to sit. Measure past the hinge cup — running the tape inside the hinge body rather than beside it — so the hinge is accounted for in the number instead of sitting outside it. Skip that and the symptom shows up during install: the rail catches on the hinge before the tray is all the way in.

A center stile — a vertical divider down the middle of the opening, common on older or face-frame cabinets — rules out a single wide pull-out entirely, regardless of how deep or tall the cabinet is. Catching this early usually means planning for two narrower units side by side instead of hunting for a different size of the same product.

Old shelf pins or shelf clips left in holes above and below the mounting point can block hardware or throw off the height if you're using those holes to set the pull-out level.

A baseboard, molding strip, or uneven back panel where the cabinet meets the wall can also stop a slide from seating flush or keep the shelf from extending its full length, even when the depth measurement on its own looks fine.

What to do when nothing fits exactly

Sometimes, after you've taken your own numbers, the honest answer is that nothing on the market matches the cabinet — the depth is unusual, the clearance is too tight for hardware, or a center stile splits the opening in a way that rules out a single sliding unit. That's a normal outcome for older cabinets and oddly proportioned kitchens, not a sign you measured wrong.

A full slide-out isn't the only way to make a deep cabinet usable. Tiered risers — fixed shelves that step up toward the back instead of sliding forward — solve the same core problem, which is not being able to see or reach what's behind the front row of items, without needing side clearance for a slide mechanism or screws into a frame that won't cooperate. They're also more forgiving in a cabinet with tight vertical clearance, since there's no hardware stack to fit.

A simple non-sliding shelf, sized to your actual interior width and depth instead of a stock size, is worth considering before writing the cabinet off entirely. It won't glide toward you, but it splits a deep cabinet into a usable upper and lower zone — often most of what a pull-out was going to deliver anyway.

If you've already got those numbers, our cabinet storage collection is a reasonable place to start comparing options against what you measured. Bring the tape measure results, not just a sense that the cabinet is awkward — that's what actually tells you what will fit.

Frequently Asked Questions

Can I use the door opening measurement instead of measuring inside the cabinet?

No, the door opening is usually wider than the face frame opening the shelf hardware has to pass through, so it will overstate what actually fits. Always take the width at the face frame's tightest point with the door open, not from the door itself.

Will a pull-out shelf work in a corner or blind cabinet?

It depends on whether the opening is a straight rectangular run or has an angled or blocked section, since a standard pull-out is built for a single straight cabinet cavity. A blind or corner cabinet usually needs a specialty mechanism built for that shape rather than a standard sliding tray, so measure and shop for that category separately.

Do I need to remove the existing shelf before installing a pull-out?

It depends on the hardware: some pull-outs mount directly to the cabinet's side walls or frame, while others are designed to sit on and attach to an existing fixed shelf. Check which mounting method a listing describes before buying, since that determines whether your current shelf stays in or comes out first.

What if my cabinet depth falls between two available sizes?

Round down to the smaller size rather than the larger one, since a pull-out that's slightly shallow still extends fully and stays functional, while one that's too deep may not clear the back wall or could bind partway through its travel. A shallower fit also leaves a small margin for the uneven back panels or moldings mentioned earlier in checking for obstructions.
